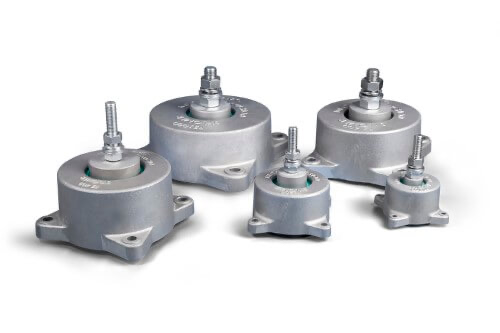

FZ Sylomer® Anti-Vibration Mounts
The FZ Sylomer® range is a family of heavy-duty anti-vibration mounts designed for equipment installed on vehicles, off-road machinery, and industrial plant subject to shocks and continuous vibration. Each mount combines an oil-resistant Sylomer® polyurethane compound with a dual-component steel housing featuring interlocking metal parts — providing robust shock protection and fail-safe performance across 15 load variants from 15 kg to 2,000 kg.
Construction
- Outer metal armour with four fixation holes for bolting to the equipment base or vehicle chassis
- Interior machined metal ring transmits the equipment load through the Sylomer® element to the outer armour
- The internal ring diameter is larger than the outer armour interior — this geometry creates the fail-safe mechanism: under extreme shock or overload, the metal components interlock before the elastomer can be destroyed
- Anti-corrosive treatment applied to all metal components for outdoor and harsh environment use
Material Properties
- Oil-resistant Sylomer® polyurethane compound — resists hydraulic fluids, lubricating oils, and fuel splashing common in vehicle and machinery environments
- Operating temperature range: −30°C to +70°C
- Suitable for static applications with significant dynamic shock loading
Typical Applications
- Sensitive electronic equipment mounted on construction, agricultural, and mining vehicles
- Control cabinets and instrumentation on off-road vehicles
- Industrial machinery and compressors subject to continuous vibration
- Outdoor equipment requiring robust anti-corrosive protection
Variants
- FZ-50-27-M10 — up to 15 kg capacity · M10 thread
- FZ-75-30-M10 — up to 30 kg capacity · M10 thread
- FZ-100-35-M12 — up to 50 kg capacity · M12 thread
- FZ-150-40-M12 — up to 75 kg capacity · M12 thread
- FZ-200-45-M16 — up to 100 kg capacity · M16 thread
- FZ-250-50-M16 — up to 125 kg capacity · M16 thread
Typical Applications
- Electronic control units and ECUs on vehicles
- Sensors, cameras, and monitoring equipment on machinery
- Small compressors and pumps on mobile equipment
Variants
- FZ-300-55-M16 — up to 175 kg capacity · M16 thread
- FZ-350-57-M16 — up to 250 kg capacity · M16 thread
- FZ-450-57-M16 — up to 350 kg capacity · M16 thread
- FZ-500-57-M20 — up to 400 kg capacity · M20 thread
- FZ-600-57-M20 — up to 500 kg capacity · M20 thread
Typical Applications
- Generator sets and power packs on mobile equipment
- Hydraulic power units on construction machinery
- Industrial compressors and pump sets subject to shock loading
Variants
- FZ-700-57-M20 — up to 750 kg capacity · M20 thread
- FZ-800-57-M20 — up to 1,000 kg capacity · M20 thread
- FZ-900-57-M20 — up to 1,500 kg capacity · M20 thread
- FZ-1000-57-M20 — up to 2,000 kg capacity · M20 thread
Typical Applications
- Large engine and powertrain isolation on heavy vehicles
- Mining equipment subject to extreme shock and vibration
- Heavy industrial machinery requiring robust fail-safe anti-vibration support
