Why These Brackets Are Needed

• Standard MF metal furring primary channels do not have pre-drilled holes or threaded studs — ceiling hangers cannot be attached directly without additional hardware
• Timber joist structures present the same challenge for channel clip installations — the joist itself has no provision for a channel or hanger fixing point
• Drilling through primary channels weakens them and voids the grid system warranty; brackets avoid this entirely by clamping to the channel flange
• All three brackets are designed to work within the Akustik ceiling hanger ecosystem — compatible with the full range of Akustik hangers and clips

Thread Compatibility

• C Bracket and L Bracket both accept M6 and M8 threaded suspension rods — matching the thread sizes used across the Akustik hanger range
• Channel Clip L Bracket is sized for standard furring channel dimensions used in timber joist ceiling assemblies

Typical Applications

• Suspended acoustic ceiling installations in commercial and residential buildings
• Retrofitting Akustik hangers to existing MF grid systems
• New-build suspended ceiling systems requiring acoustic isolation of the ceiling from the structure
• Timber-framed residential construction requiring resilient ceiling mounts

Construction & Function

• C-shaped steel profile clips over the top flange of a standard UK MF primary channel, gripping both sides for a secure, rattle-free connection
• Threaded aperture accepts M6 or M8 suspension rods — allowing Akustik hangers to be positioned anywhere along the primary channel run without pre-drilling
• The C-profile geometry distributes load across both flanges of the primary channel rather than concentrating it at a single point
• Product code: 610329 · BIM model available

When to Use C Bracket vs L Bracket

• The C Bracket engages both flanges of the primary channel — providing greater rotational stability where hanger loads may be eccentric or where the suspension rod must hang at an angle
• Preferred where headroom above the primary channel is limited and the bracket must remain within the depth of the channel profile

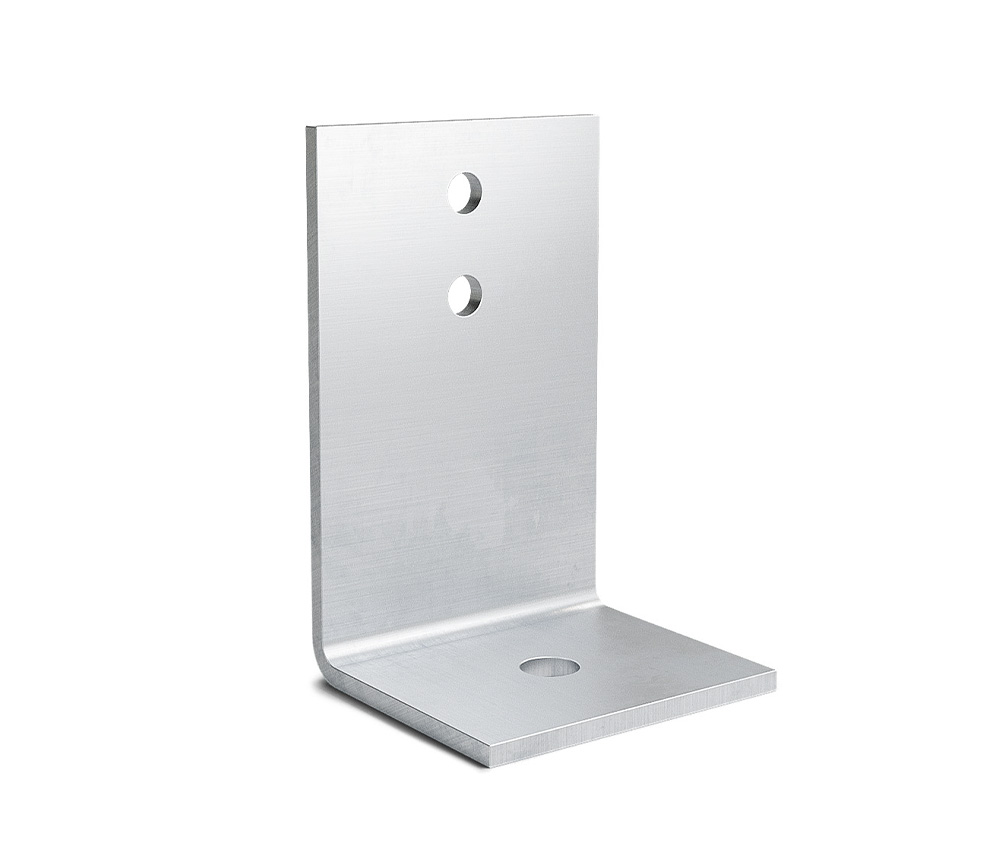

Construction & Function

• L-shaped steel profile clips to the top flange of a standard UK MF primary channel from one side
• Accepts M6 or M8 threaded suspension rods — positions Akustik hangers along the primary channel without drilling or channel modification
• The L-profile provides quick clip-on installation from the side of the channel — suited to installations where access above the primary channel is restricted
• Product code: 606861 · BIM model available

When to Use L Bracket vs C Bracket

• The L Bracket installs from the side — useful where the space above the primary channel is occupied by services or where the installer is working from below
• Better suited to straight vertical hanger runs where the rod load is concentric and no significant lateral force is expected at the bracket

Construction & Function

• Designed specifically for timber joist ceiling assemblies — provides the fixing interface between the joist structure and AMC channel clips
• The bracket mounts to the underside or face of a timber joist, creating a channel profile that the Akustik channel clip can engage with
• Enables full acoustic isolation of the ceiling board from the timber structure — the same isolation performance available in concrete and steel frame buildings
• Product code: 610377 · BIM model available

Typical Applications

• Timber-frame residential buildings requiring acoustic ceiling isolation between floors
• Converted commercial-to-residential buildings with timber floor structures
• Extensions and refurbishments where timber joists are the ceiling substrate
• Any project using Akustik channel clips in a timber joist environment
