Akustik + Sylomer® Floor Mount

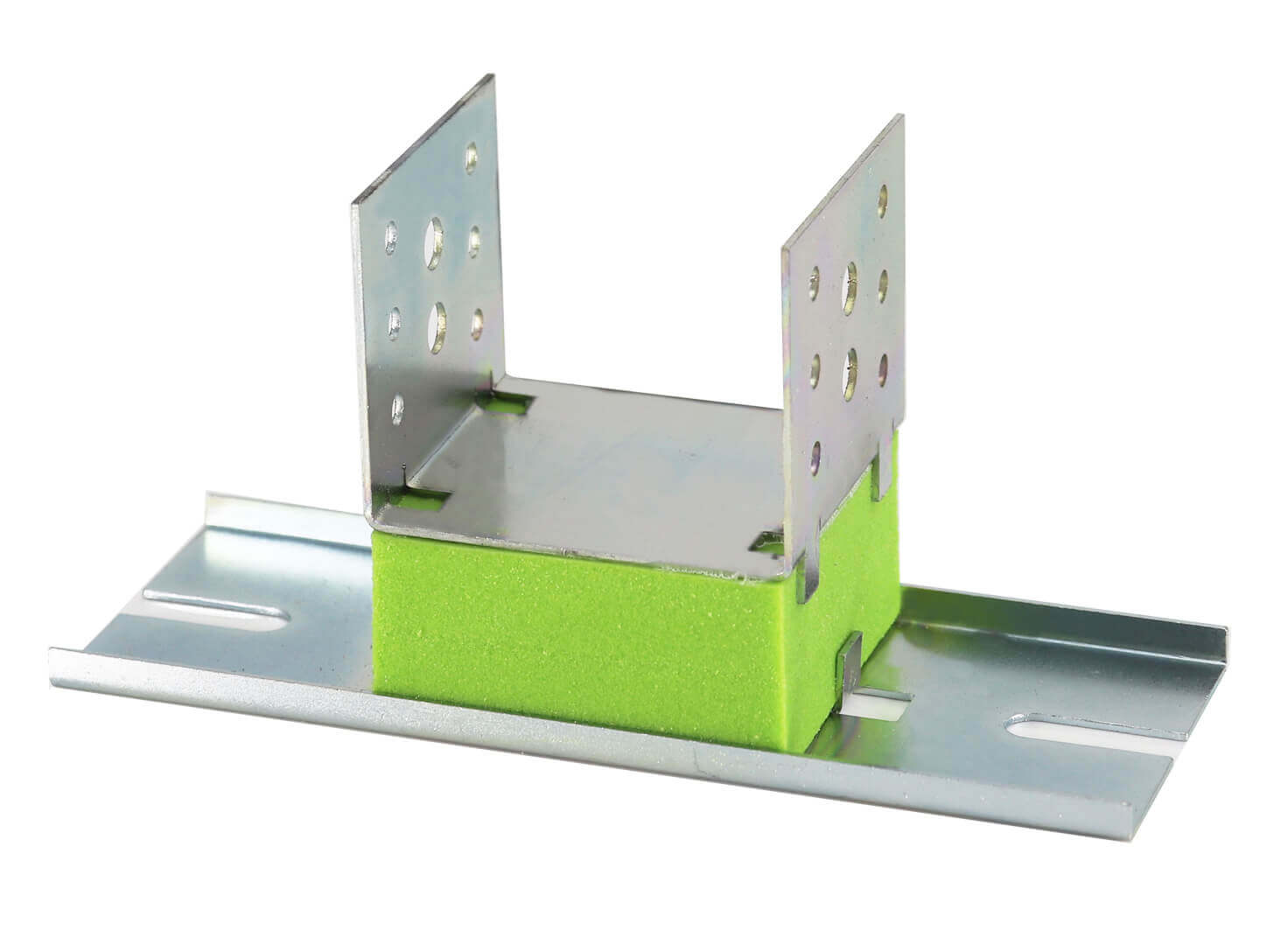

The Akustik Sylomer® Floor Mount is a point-bearing isolation element for floating floor construction. Each unit houses a calibrated Sylomer® pad within a galvanised steel housing, delivering precise load-matched performance across five variants covering 25 to 100 kg/m² — without the complexity of spring systems.

System Overview How the Floor Mount Works Load-matched Sylomer® in a steel housing for point-bearing floating floors.

How It Works

• Each mount contains a pre-selected Sylomer® pad factory-fitted to a galvanised steel cup
• The Sylomer® grade is calibrated to the specified floor load — correct loading ensures optimal deflection and maximum isolation
• Mounts are placed under structural supports (battens, C-profiles, beams) on a defined grid
• The galvanised housing protects the elastomer during concrete pour in wet screed applications

Typical Applications

• Point-bearing floating floors under dry and wet screeds
• Residential and hotel rooms requiring high impact sound reduction
• Floors above mechanical plant rooms and car parks
• Refurbishment projects where mat systems are impractical

Very Light Load · 25 kg/m² Floor Mount 25 Entry-level isolation for lightweight timber and panel floating floors.

Light Load · 30 kg/m² Floor Mount 30 Isolation for light screed and low-density floating floor assemblies.

Medium Load · 40 kg/m² Floor Mount 40 Versatile mid-range variant for the most common residential screed weights.

Heavy Load · 75 kg/m² Floor Mount 75 Heavy-duty isolation for thick screed and reinforced concrete floating floors.

Very Heavy Load · 100 kg/m² Floor Mount 100 Maximum-rated point-bearing mount for the most demanding structural floating floors.
