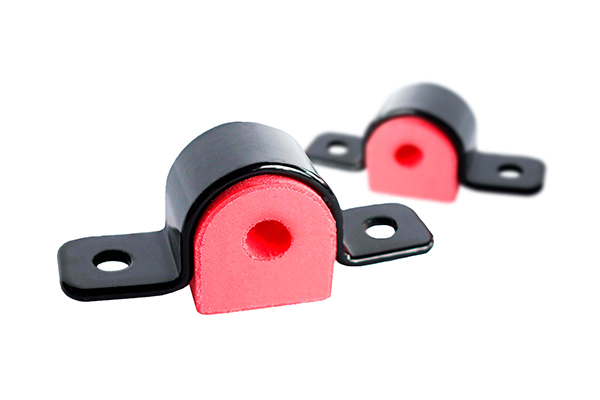

Akustik Pipe Omega + Sylomer®
The Akustik Pipe Omega is a compact vibration isolation clamp consisting of a Sylomer® microcellular polyurethane element enclosed in a galvanised steel omega-profile housing. Designed to acoustically decouple rigid and flexible pipework from supporting structures — preventing structure-borne noise transmission across both static and dynamic load conditions.
How It Works
- Sylomer® element sits within the omega-profile steel housing, clamping around the pipe
- Preload is set by the distance the Sylomer® element extends beyond the housing — bolt is tightened until firm base contact is achieved
- Single fastening hole allows quick installation and removal of the Sylomer® element without disturbing the pipework
- The steel housing acts as a fail-safe — limiting deflection under shock or overload conditions
- Multidirectional isolation absorbs vibration in vertical, horizontal, and lateral axes simultaneously
Typical Applications
- HVAC pipework isolation in commercial and residential buildings
- Hydraulic lines on construction and mining equipment
- Pipework on buses, coaches, and heavy vehicles
- Industrial plant pipework subject to pulsation and vibration
Variants
- Type Omega 23892 — ¼″ pipe OD · K = 28 N/mm
- Type Omega 23893 — ⅜″ pipe OD · K = 40 N/mm
- Type Omega 23894 — ½″ pipe OD · K = 56 N/mm
- Type Omega 23895 — ⅝″ pipe OD · K = 68 N/mm
Suitable For
- Small-bore hydraulic and refrigerant lines
- Instrument piping on machinery and vehicles
- Light-duty HVAC copper pipework
Variants
- Type Omega 23896 — ¾″ pipe OD · K = 75 N/mm
- Type Omega 23897 — 1″ pipe OD · K = 90 N/mm
- Type Omega 23898 — 1⅜″ pipe OD · K = 110 N/mm
Suitable For
- Medium-bore HVAC chilled water and heating pipework
- Industrial process pipework under dynamic loading
- Heavy vehicle hydraulic and fuel lines
Material Properties
- Sylomer® microcellular polyurethane — superior isolation characteristics compared to rubber or cork
- Galvanised steel housing — corrosion resistant for indoor and sheltered outdoor use
- No aging or hardening of the Sylomer® element over service life
- Maintenance-free — no lubrication or periodic replacement required
Performance
- Effective across static and dynamic load conditions
- Fail-safe housing prevents over-deflection under shock loads
- Multidirectional isolation — vertical, horizontal, and lateral axes
- Compact form factor suits tight installation spaces
