Akustik Pipe

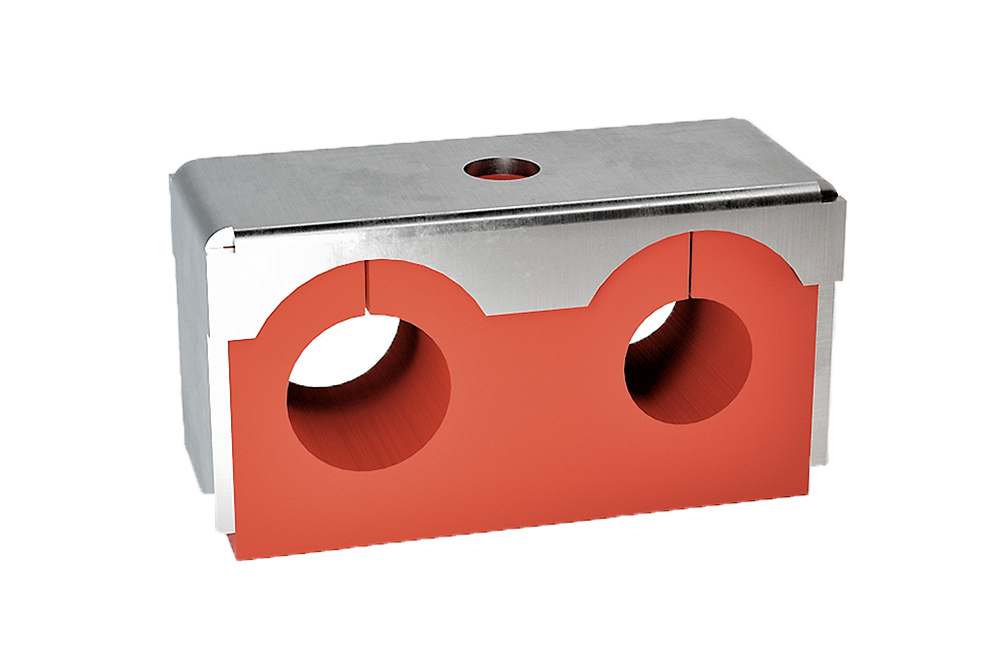

The Akustik Pipe is a double-hole pipe isolation clamp using a Sylomer® microcellular polyurethane element housed in a galvanised steel body. It decouples pipework from supporting structures in both rigid and flexible pipe installations — stopping structure-borne noise and vibration from transmitting into the building fabric at each fixing point.
How It Works
- A double-hole Sylomer® element is fitted within the steel housing, clamping the pipe at two contact points for stable, rattle-free support
- Preload is controlled by the distance the Sylomer® element protrudes beyond the housing — bolt is tightened until the housing base makes firm contact
- The Sylomer® element is removable without disturbing the pipe, allowing inspection or replacement in service
- The steel housing provides fail-safe protection — limiting deflection under shock and preventing contact between pipe and structure
Typical Applications
- HVAC heating, cooling, and refrigerant pipework isolation
- Hydraulic lines on construction and mining machinery
- Pipework on buses, coaches, and heavy vehicles
- Industrial plant pipework under pulsation or dynamic load
Variants
- Type A — ⅝″ pipe OD · K = 53 N/mm
- Type A — ¾″ pipe OD · K = 68 N/mm
Suitable For
- Small-bore copper and steel HVAC pipework
- Refrigerant lines in commercial air conditioning systems
- Instrument and control pipework on machinery
Variants
- Type A — 1″ pipe OD · K = 110 N/mm
- Type A — 1¼″ pipe OD · K = 155 N/mm
Suitable For
- Standard-bore heating and chilled water pipework
- Compressed air and gas lines in industrial buildings
- Medium-bore process pipework under dynamic loading
Type A — Heavy
- Type A — 1⅜″ pipe OD · K = 220 N/mm
Type B
- Type B — 1⅜″ pipe OD · K = 302 N/mm · reinforced housing for higher load ratings
Suitable For
- Larger-bore industrial and HVAC main distribution pipework
- Hydraulic mains on heavy construction equipment
- Pipework subject to significant dynamic and pulsation loads
Material Properties
- Sylomer® microcellular polyurethane — superior isolation compared to rubber or cork
- Galvanised steel housing — corrosion resistant for indoor and sheltered outdoor installations
- No aging or performance degradation of the Sylomer® element over service life
- Maintenance-free — no lubrication or scheduled replacement required
Performance
- Multidirectional isolation — absorbs vibration in all axes simultaneously
- Fail-safe steel housing limits deflection under shock or overload
- Compact form factor suits congested mechanical plantroom installations
- Removable Sylomer® element simplifies maintenance without pipe removal
